SCAMAX® 4x3 Features

<< Back to main SCAMAX® 4x3 page

• Gigabit Ethernet
  Interface with a future.
  Fast, safe and uncomplicated.

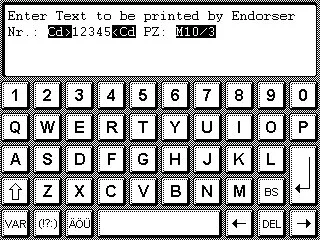

• TSCP (TouchScreen Communication Panel)
  Simplifies operation of advanced functions.

• PFC PaperFlowControl
  Controls paper flow from the feeder to the output hopper and detects feeding errors.

• Document indexing
  Generates user-defined index data during the scanning process and passes the data on to post processing.

• Intelligent Endorser
  Prints freely definable information pre- and/or post scan.

• Bates Stamping
  Stamps images electronically.

SIMPLE

• Ergonomic
  Minimises operator fatigue because controls are easily reached.
  High contrast TouchScreen display ensures excellent screen readability.
  Document sequence is always maintained to eliminate post scan sorting.

• Quiet Operation
  Ultra quiet and compact design easily fits into any office environment.

• Ease of Use
  Intuitive design ensures ease of operation, even after an upgrade.

SELECTABLE

• Scan Speed adjustable by button *
  90, 120, 150, 170 ppm
  180, 240, 300, 340 ipm

• Resolution
  150, 200, 300, 400 and 600 dpi

• Image Quality
  Dynamic binarisation, selectable gamma correction.

• Document Feed
  Auto-feed (batch), Hand-feed with or without paper separation.

• User Formats
  Document width: min 28 mm - max 317.5 mm
  Document length: min 60 mm - max 2075 mm

• Paper Thickness
  Onion skin (flimsies) to Manila folder file covers.

• Image Output
  Bitonal, Grey, Colour* – compressed or uncompressed.
  Multi resolution from the same image.
  JPEG quality
  Snipping function

• Color management
  Supports ICC-profiles

• Double feed control
  Three ultrasound sensors, individually controlled across entire document length and across individual document areas.

• Scalable Processor Performance
  Demand orientated image processing.

STRUCTURED

Indexing

• Event Controlled Indexing replaces costly software and reduces throughput times.

• Utilises Established Filing Structures, structure can be fully user-defined based on established organisation methods.

• Index Trigger - index triggers are activated by patch code and manual input.

• User Definable Counters, fixed texts and flags.

• Export Capability Index Values can be easily imported into Document Management Systems.

ECONOMICAL

• Low Operating Costs
  Only few wearing parts with long life expectancy.

• Energy Saving
  Utilises an energy saving LED illumination system.
  No warm-up time for the lamps, instantly useable upon power on.

• Energy Star
  Exceeds Energy Star requirements for energy consumption.

• Maintenance Worldwide
  Onsite maintenance is provided by authorized service partners.

• Compact Design
  Small footprint design saves valuable office space.

NO LIMITS

• Advanced Engineering Ensures No Volume Limits
  Continuous scanning – 24 hours a day, 7 days a week, 52 weeks...

• No Service Area Limits
  True worldwide service by InoTec technicians or authorised, factory trained service partners.

OPTIMISED

• Image enhancement PDT

• Cropping/Deskew
  Black border removal, bicubic deskew, content based rotation.

• colerase™* Digital mixed color filter

• coladapt™ Dynamic binariosation

• Scan Background

• Selectable black or white.

• Optical Resolution
  600 dpi

• Multistream, triplestream, dualstream capabilities

• Automatic Colour Detection
  With configurable settings.

• CCP Color Calibration Program
  Software to calibrate colors using IT8 targets.

• Blank page detection
  Intelligent, content based

COMMUNICATIVE

• Operator/Machine Interface
  Utilises easy to use TouchScreen Communication Panel

• Language
  Instructions and error messages are simple to understand and multilingual.

• Full Text
  All error messages and screen references are in full text. No coded messages or instructions.

• Pictograms
  Ensures fast orientation – clear, understandable, intuitive.

SECURE

• Contact Feeder
  Automatic, safe, reliable and controlled.

• Paper Transport
  Safe, reliable and controlled.
  Glassless
  Gentle on papers.
  Simple and easy access everywhere.
  Reliable processing, even with widely varying documents in the same batch.
